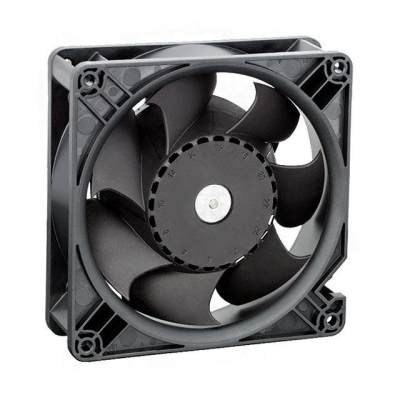

DV5214NU
| Manufacturer: | ebm-papst Inc. |
In Stock 33 pcs
|
|
|---|---|---|---|
| Datasheet: | DV5214NU | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 24VDC 127X38MM IP68 | $156.52 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4930 RPM
- Noise
- 56.0 dB(A)
- Width
- 38.00mm
- Series
- DV5200U
- Weight
- 1.2 lbs (544.3 g)
- Air Flow
- 158.9 CFM (4.45m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 19.80W
- Voltage Range
- 18 ~ 26.4VDC
- Static Pressure
- -
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Material - Frame
- Aluminum
- Size / Dimension
- Square - 127mm L x 127mm H
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Current Rating (Amps)
- -
- Operating Temperature
- -4 ~ 149°F (-20 ~ 65°C)
