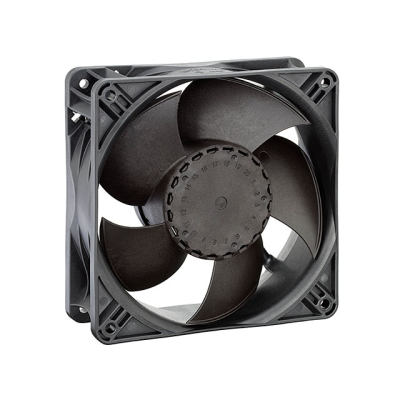

ACI4420HH
| Manufacturer: | ebm-papst Inc. |
In Stock 198 pcs
|
|
|---|---|---|---|
| Datasheet: | ACI4420HH | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 120/230VAC 119X38MM 106CFM | $86.75 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3350 RPM
- Noise
- 42.0 dB(A)
- Width
- 38.00mm
- Series
- Green Tech ACi4400
- Weight
- 0.551 lb (249.93 g)
- Air Flow
- 105.9 CFM (2.97m³/min)
- Fan Type
- Tubeaxial
- Features
- Electronic Commutation (EC)
- Approvals
- CSAus, cURus
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 4.40W
- Voltage Range
- 195 ~ 265VAC
- Static Pressure
- -
- Voltage - Rated
- 230VAC
- Lifetime @ Temp.
- 65000 Hrs @ 40°C
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 119.5mm L x 119.5mm H
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
- Current Rating (Amps)
- 0.041A
- Operating Temperature
- -4 ~ 167°F (-20 ~ 75°C)
