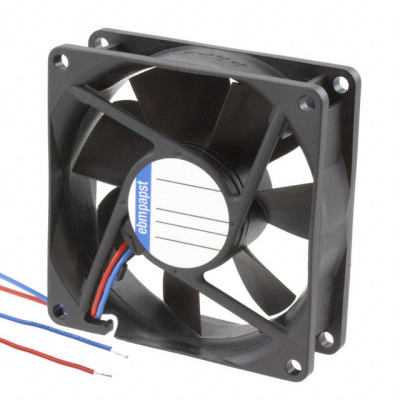

8414NMU
| Manufacturer: | ebm-papst Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 8414NMU | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 80X25.4MM 24VDC WIRE | $55.34 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2600 RPM
- Noise
- 27.0 dB(A)
- Width
- 25.40mm
- Series
- 8400NU
- Weight
- 0.209 lb (94.8 g)
- Air Flow
- 34.1 CFM (0.955m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 1.40W
- Voltage Range
- 18 ~ 28VDC
- Static Pressure
- -
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Current Rating (Amps)
- -
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
