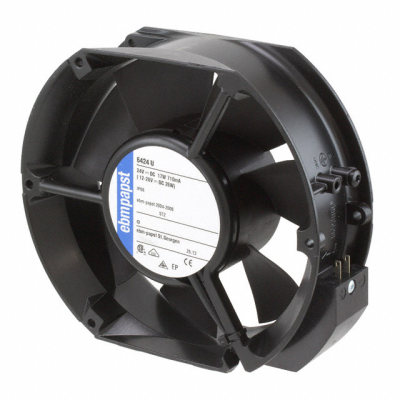

6424U
| Manufacturer: | ebm-papst Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 6424U | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 171.5X50.8MM 24VDC | $136.48 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3400 RPM
- Noise
- 57.0 dB(A)
- Width
- 50.80mm
- Series
- 6400U
- Weight
- 1.7 lbs (771.1 g)
- Air Flow
- 241.3 CFM (6.76m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- UL
- Part Status
- Active
- Termination
- 2 Terminals
- Bearing Type
- Ball
- Power (Watts)
- 18.00W
- Voltage Range
- 12 ~ 28VDC
- Static Pressure
- -
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Material - Frame
- Aluminum
- Size / Dimension
- Rectangular/Rounded - 171.5mm L x 150.4mm H
- Ingress Protection
- IP68 - Dust Tight, Waterproof
- Current Rating (Amps)
- -
- Operating Temperature
- -4 ~ 167°F (-20 ~ 75°C)
