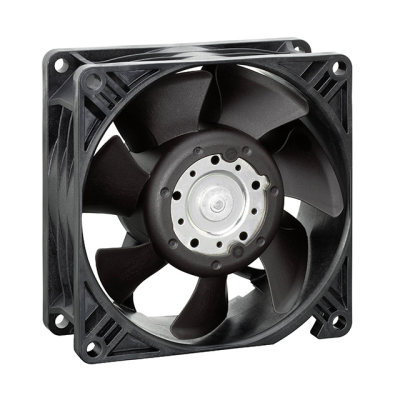

3254J/2H3P
| Manufacturer: | ebm-papst Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 3254J/2H3P | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 24VDC 92X92X38MM 158CF | $60.69 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 7450 RPM
- Noise
- 64.0 dB(A)
- Width
- 38.00mm
- Series
- S-Panther 3250J
- Weight
- 0.529 lb (239.95 g)
- Air Flow
- 158.0 CFM (4.42m³/min)
- Fan Type
- Tubeaxial
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 35.00W
- Voltage Range
- 14 ~ 26.4VDC
- Static Pressure
- -
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 85000 Hrs @ 40°C
- Material - Blade
- Polyamide (PA), Nylon
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 1.45A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
