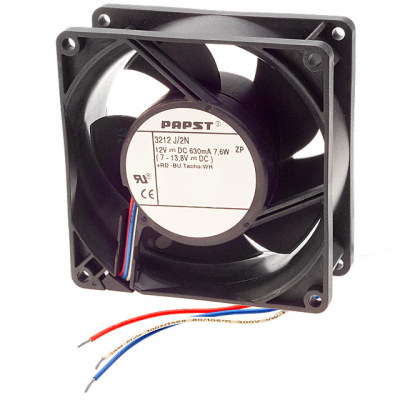

3212J/2N

Product Parameter

RPM

6000 RPM

Noise

51.0 dB(A)

Width

38.00mm

Series

3200J

Weight

0.5 lb (226.8 g)

Air Flow

77.0 CFM (2.16m³/min)

Fan Type

Tubeaxial

Features

Speed Sensor (Tach)

Approvals

CSA, UL, VDE

Part Status

Obsolete

Termination

3 Wire Leads

Bearing Type

Ball

Power (Watts)

7.50W

Voltage Range

7 ~ 13.8VDC

Static Pressure

-

Voltage - Rated

12VDC

Lifetime @ Temp.

-

Material - Blade

Polyamide (PA), Nylon, Fiberglass Reinforced

Material - Frame

Polybutylene Terephthalate (PBT), Fiberglass Reinforced

Size / Dimension

Square - 92mm L x 92mm H

Ingress Protection

-

Current Rating (Amps)

-

Operating Temperature

-
