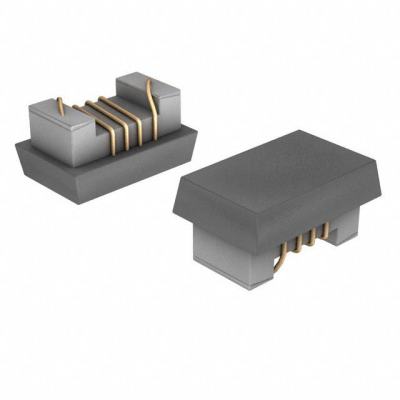

744917018

Product Parameter

Type

Wirewound

Series

WE-KI HC

Ratings

-

Q @ Freq

18 @ 250MHz

Packaging

Digi-Reel®

Shielding

Unshielded

Tolerance

±0.2nH

Inductance

1.8nH

Part Status

Active

Mounting Type

Surface Mount

Package / Case

0603 (1608 Metric)

Material - Core

Ceramic

Size / Dimension

0.067" L x 0.043" W (1.70mm x 1.10mm)

DC Resistance (DCR)

33mOhm Max

Current - Saturation

-

Current Rating (Amps)

2.1A

Height - Seated (Max)

0.044" (1.11mm)

Operating Temperature

-40°C ~ 125°C

Supplier Device Package

0603 (1608 Metric)

Frequency - Self Resonant

16GHz

Inductance Frequency - Test

250MHz
