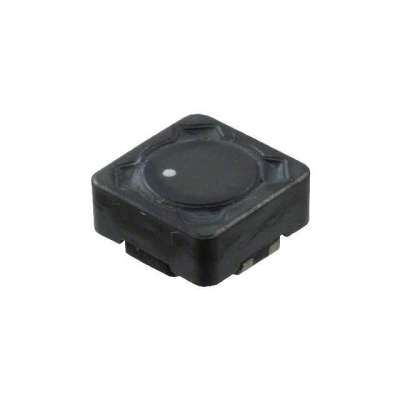

744878005

Product Parameter

Height

0.157" (4.00mm)

Series

WE-DD

Ratings

-

Packaging

Digi-Reel®

Shielding

Shielded

Tolerance

±20%

Part Status

Discontinued at Digi-Key

Mounting Type

Surface Mount

Package / Case

Nonstandard

Number of Coils

2

Size / Dimension

0.287" L x 0.287" W (7.30mm x 7.30mm)

Operating Temperature

-40°C ~ 125°C

Current Rating - Series

750mA

Current Rating - Parallel

1.5A

Current Saturation - Series

1.5A

DC Resistance (DCR) - Series

-

Current Saturation - Parallel

3A

DC Resistance (DCR) - Parallel

120mOhm Max

Inductance - Connected In Series

22.4µH

Inductance - Connected In Parallel

5.6µH
