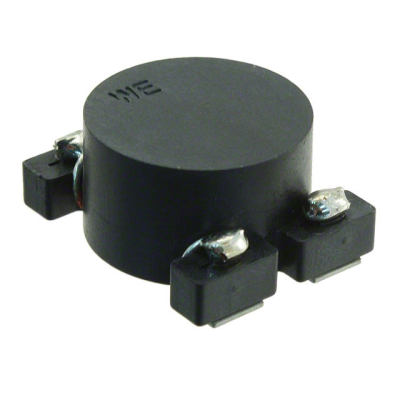

744851470

Product Parameter

Height

0.453" (11.50mm)

Series

WE-DCT

Ratings

-

Packaging

Digi-Reel®

Shielding

Shielded

Tolerance

±10%

Part Status

Active

Mounting Type

Surface Mount

Package / Case

Nonstandard

Number of Coils

2

Size / Dimension

0.906" L x 0.728" W (23.00mm x 18.50mm)

Operating Temperature

-40°C ~ 125°C

Current Rating - Series

3.6A

Current Rating - Parallel

7.2A

Current Saturation - Series

5.5A

DC Resistance (DCR) - Series

-

Current Saturation - Parallel

11A

DC Resistance (DCR) - Parallel

14mOhm Max

Inductance - Connected In Series

18.8µH

Inductance - Connected In Parallel

4.7µH
