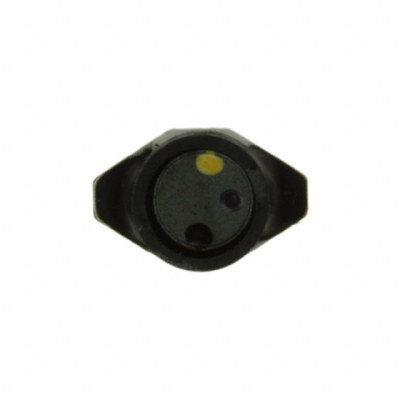

74451147

Product Parameter

Type

Wirewound

Series

WE-PD3

Ratings

-

Q @ Freq

-

Packaging

Digi-Reel®

Shielding

Shielded

Tolerance

±20%

Inductance

47µH

Part Status

Active

Mounting Type

Surface Mount

Package / Case

Nonstandard

Material - Core

Ferrite

Size / Dimension

0.500" L x 0.406" W (12.70mm x 10.30mm)

DC Resistance (DCR)

230mOhm Max

Current - Saturation

140mA

Current Rating (Amps)

500mA

Height - Seated (Max)

0.118" (3.00mm)

Operating Temperature

-40°C ~ 125°C

Supplier Device Package

-

Frequency - Self Resonant

11.5MHz

Inductance Frequency - Test

100kHz
