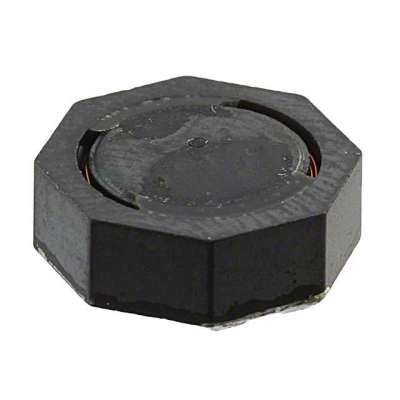

744066220

Product Parameter

Type

Wirewound

Series

WE-TPC

Ratings

-

Q @ Freq

-

Packaging

Digi-Reel®

Shielding

Shielded

Tolerance

±30%

Inductance

22µH

Part Status

Active

Mounting Type

Surface Mount

Package / Case

Nonstandard

Material - Core

Ferrite

Size / Dimension

0.394" L x 0.394" W (10.00mm x 10.00mm)

DC Resistance (DCR)

75mOhm Max

Current - Saturation

2.3A

Current Rating (Amps)

2.5A

Height - Seated (Max)

0.161" (4.10mm)

Operating Temperature

-40°C ~ 125°C

Supplier Device Package

-

Frequency - Self Resonant

12MHz

Inductance Frequency - Test

100kHz
