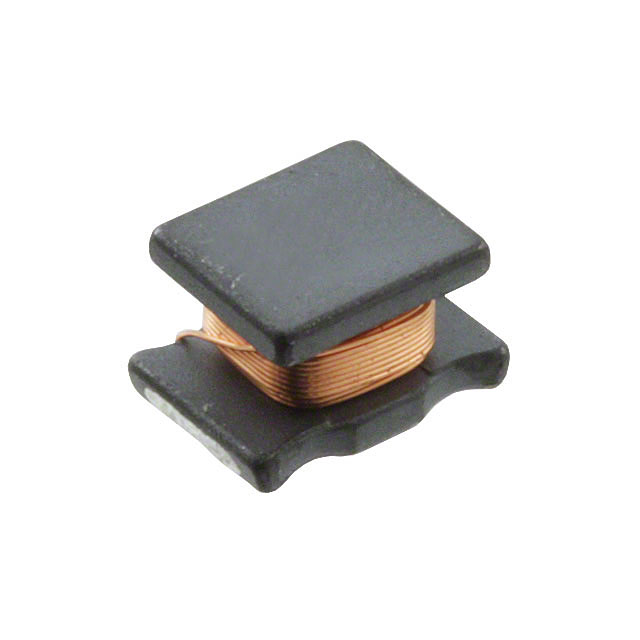

744045391

Product Parameter

Type

Wirewound

Series

WE-LQ

Ratings

-

Q @ Freq

50 @ 796kHz

Packaging

Digi-Reel®

Shielding

Unshielded

Tolerance

±10%

Inductance

390µH

Part Status

Active

Mounting Type

Surface Mount

Package / Case

1812 (4532 Metric)

Material - Core

Ferrite

Size / Dimension

0.177" L x 0.126" W (4.50mm x 3.20mm)

DC Resistance (DCR)

13Ohm Max

Current - Saturation

270mA

Current Rating (Amps)

110mA

Height - Seated (Max)

0.114" (2.90mm)

Operating Temperature

-40°C ~ 125°C

Supplier Device Package

1812

Frequency - Self Resonant

5MHz

Inductance Frequency - Test

1MHz
