691385700006
| Manufacturer: | Wurth Electronics Inc. |
In Stock 16 pcs
|
|
|---|---|---|---|
| Datasheet: | 691385700006 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |

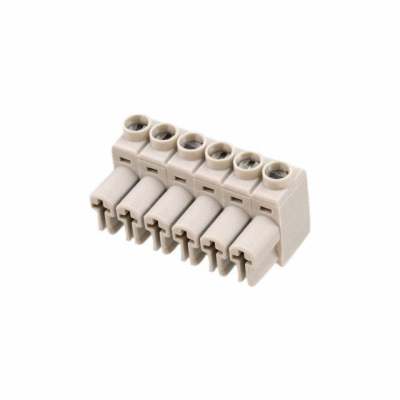

| Description: | TERM BLOCK PLUG 6POS STR 5MM | $3.32 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Female Sockets
- Color
- Gray
- Pitch
- 0.197" (5.00mm)
- Series
- WR-TBL Series 385
- Features
- -
- Packaging
- Bulk
- Screw Size
- M2.5
- Part Status
- Active
- Current - UL
- 14A
- Voltage - UL
- 300V
- Current - IEC
- 16A
- Mounting Type
- Free Hanging (In-Line)
- Voltage - IEC
- 250V
- Torque - Screw
- 0.5 Nm (4.4 Lb-In)
- Plug Wire Entry
- 180°
- Contact Material
- Phosphor Bronze
- Number of Levels
- 1
- Insulation Height
- 0.610" (15.49mm)
- Termination Style
- Screw
- Wire Strip Length
- 7mm
- Header Orientation
- -
- Ingress Protection
- -
- Contact Tail Length
- -
- Dielectric Material
- Polycarbonate (PC)
- Number of Positions
- 6
- Positions Per Level
- 6
- Contact Mating Finish
- -
- Operating Temperature
- -30°C ~ 130°C
- Wire Gauge or Range - AWG
- 12-24 AWG
- Wire Gauge or Range - mm²
- 0.2-2.5mm²
- Material Flammability Rating
- UL94 V-0
