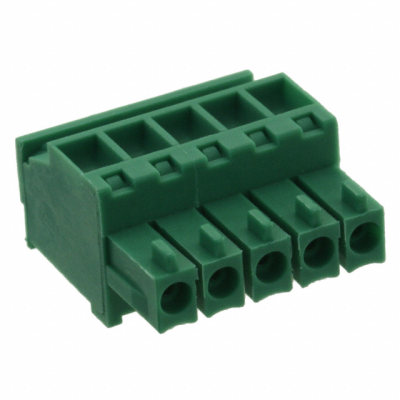

691363110005
| Manufacturer: | Wurth Electronics Inc. |
In Stock 298 pcs
|
|
|---|---|---|---|
| Datasheet: | 691363110005 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | TERM BLOCK PLUG 5POS 90DEG 3.5MM | $3.03 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Female Sockets
- Color
- Green
- Pitch
- 0.138" (3.50mm)
- Series
- WR-TBL Series 3631
- Features
- -
- Packaging
- Bulk
- Screw Size
- M2
- Part Status
- Active
- Current - UL
- 8A
- Voltage - UL
- 300V
- Current - IEC
- -
- Mounting Type
- Free Hanging (In-Line)
- Torque - Screw
- 0.2 Nm (1.7 Lb-In)
- Plug Wire Entry
- 90°
- Contact Material
- -
- Number of Levels
- 1
- Insulation Height
- 0.752" (19.10mm)
- Termination Style
- Screw - Leaf Spring, Wire Guard
- Wire Strip Length
- 6-7mm
- Header Orientation
- -
- Ingress Protection
- -
- Contact Tail Length
- -
- Dielectric Material
- Polyamide (PA66), Nylon 6/6
- Number of Positions
- 5
- Positions Per Level
- 5
- Contact Mating Finish
- -
- Operating Temperature
- -40°C ~ 105°C
- Wire Gauge or Range - AWG
- 16-28 AWG
- Wire Gauge or Range - mm²
- 0.08-1.5mm²
- Material Flammability Rating
- UL94 V-0
