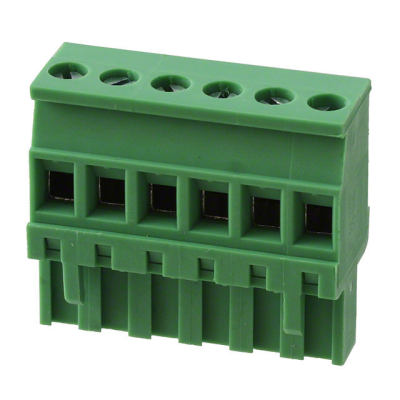

691351700006
| Manufacturer: | Wurth Electronics Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 691351700006 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | TERM BLOCK PLUG 6POS 90DEG 5MM | $2.48 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Female Sockets
- Color
- Green
- Pitch
- 0.197" (5.00mm)
- Series
- WR-TBL Series 3517
- Features
- Retention Latches (Wire Side)
- Packaging
- Bulk
- Screw Size
- M3
- Part Status
- Active
- Current - UL
- 15A
- Voltage - UL
- 300V
- Current - IEC
- -
- Mounting Type
- Free Hanging (In-Line)
- Torque - Screw
- 0.4 Nm (3.5 Lb-In)
- Plug Wire Entry
- 90°
- Contact Material
- -
- Number of Levels
- 1
- Insulation Height
- 1.024" (26.01mm)
- Termination Style
- Screw - Leaf Spring, Wire Guard
- Wire Strip Length
- 6-7mm
- Header Orientation
- -
- Ingress Protection
- -
- Contact Tail Length
- -
- Dielectric Material
- Polyamide (PA66), Nylon 6/6
- Number of Positions
- 6
- Positions Per Level
- 6
- Contact Mating Finish
- -
- Operating Temperature
- -40°C ~ 105°C
- Wire Gauge or Range - AWG
- 12-24 AWG
- Wire Gauge or Range - mm²
- 0.2-3mm²
- Material Flammability Rating
- UL94 V-0
