691309310002
| Manufacturer: | Wurth Electronics Inc. |
In Stock 1241 pcs
|
|
|---|---|---|---|
| Datasheet: | 691309310002 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |

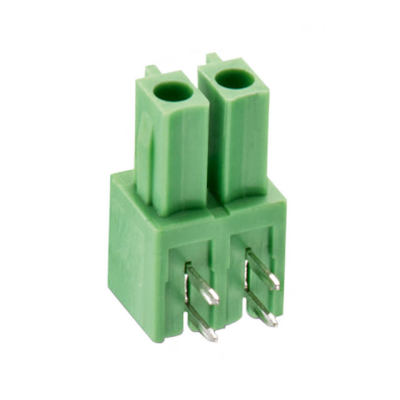

| Description: | TERM BLOCK HDR 2POS 90DEG 3.81MM | $1.04 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Header, Female Sockets
- Color
- Green
- Pitch
- 0.150" (3.81mm)
- Series
- WR-TBL Series 3093
- Features
- -
- Packaging
- Bulk
- Screw Size
- -
- Part Status
- Active
- Current - UL
- 8A
- Voltage - UL
- 300V
- Current - IEC
- -
- Mounting Type
- Through Hole
- Torque - Screw
- -
- Plug Wire Entry
- -
- Contact Material
- Copper Alloy
- Number of Levels
- 1
- Insulation Height
- 0.260" (6.60mm)
- Termination Style
- Solder
- Wire Strip Length
- -
- Header Orientation
- 90°, Right Angle
- Ingress Protection
- -
- Contact Tail Length
- 0.134" (3.40mm)
- Dielectric Material
- Polyamide (PA66), Nylon 6/6
- Number of Positions
- 2
- Positions Per Level
- 2
- Contact Mating Finish
- Tin
- Operating Temperature
- -40°C ~ 115°C
- Wire Gauge or Range - AWG
- -
- Wire Gauge or Range - mm²
- -
- Material Flammability Rating
- UL94 V-0
