691121710006
| Manufacturer: | Wurth Electronics Inc. |
In Stock 262 pcs
|
|
|---|---|---|---|
| Datasheet: | 691121710006 | ||
| Product Category: | Terminal Blocks - Wire to Board | Reference Price (In US Dollars) | 1pcs |

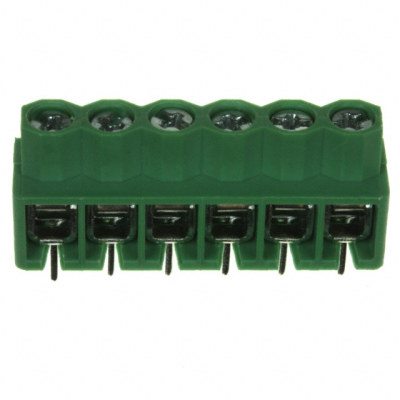

| Description: | TERM BLK 6POS SIDE ENTRY 5MM PCB | $2.34 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Color
- Green
- Pitch
- 0.197" (5.00mm)
- Series
- WR-TBL Series 121
- Current
- 10A
- Voltage
- 300V
- Features
- -
- Packaging
- Tray
- Wire Gauge
- 12-20 AWG
- Part Status
- Active
- Screw Thread
- M3
- Mounting Type
- Through Hole
- Torque - Screw
- 0.4 Nm (3.5 Lb-In)
- Number of Levels
- 1
- Wire Termination
- Screw - Leaf Spring, Wire Guard
- Mating Orientation
- Horizontal with Board
- Dielectric Material
- Polyamide (PA66), Nylon 6/6
- Positions Per Level
- 6
- Operating Temperature
- -40°C ~ 105°C
- Clamp Material - Plating
- Steel, Stainless
- Screw Material - Plating
- Steel - Zinc Plated
- Contact Material - Plating
- Tin Plated
