690368171272
| Manufacturer: | Wurth Electronics Inc. |
In Stock 10 pcs
|
|
|---|---|---|---|
| Datasheet: | 690368171272 | ||
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets | Reference Price (In US Dollars) | 1pcs |

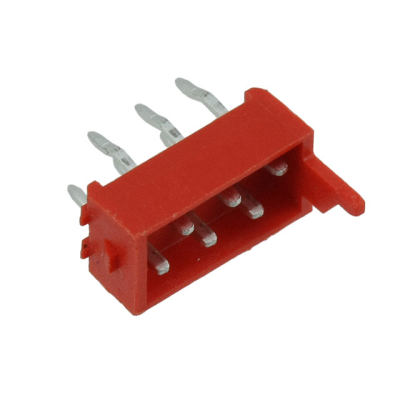

| Description: | CONN RCPT 12POS 0.1 TIN PCB R/A | $1.08 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Style
- Board to Board or Cable
- Series
- WR-MM
- Features
- -
- Packaging
- Tube
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Forked
- Contact Shape
- Rectangular
- Mounting Type
- Through Hole, Right Angle
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
- Number of Rows
- 2
- Pitch - Mating
- 0.100" (2.54mm)
- Voltage Rating
- 100VAC
- Contact Material
- Phosphor Bronze
- Insulation Color
- Red
- Insulation Height
- 0.197" (5.00mm)
- Ingress Protection
- -
- Insulation Material
- Polybutylene Terephthalate (PBT)
- Number of Positions
- 12
- Row Spacing - Mating
- 0.059" (1.50mm)
- Contact Finish - Post
- Tin
- Contact Length - Post
- 0.122" (3.10mm)
- Current Rating (Amps)
- 1.5A per Contact
- Operating Temperature
- -40°C ~ 105°C
- Mated Stacking Heights
- -
- Contact Finish - Mating
- Tin
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- -
- Contact Finish Thickness - Mating
- -
