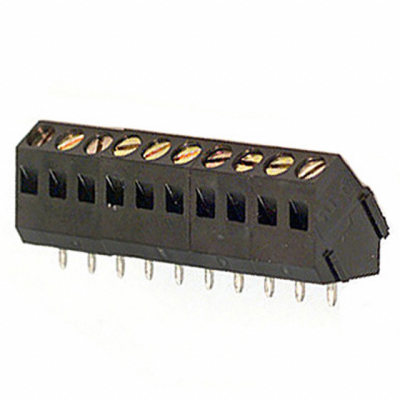

999357

Product Parameter

Color

Black

Pitch

0.197" (5.00mm)

Series

Omnimate LM

Current

20A

Voltage

300V

Features

Interlocking (Side)

Packaging

Bulk

Wire Gauge

14-24 AWG

Part Status

Obsolete

Screw Thread

M2.5

Mounting Type

Through Hole

Torque - Screw

0.4-0.5 Nm (3.5-4.4 Lb-In)

Number of Levels

1

Wire Termination

Screw - Clamping Yoke, Tension Sleeve

Mating Orientation

45° (135°) Angle with Board

Dielectric Material

Thermoplastic, Wemid

Positions Per Level

10

Operating Temperature

-50°C ~ 120°C

Clamp Material - Plating

-

Screw Material - Plating

-

Contact Material - Plating

Copper Alloy - Tin Plated
