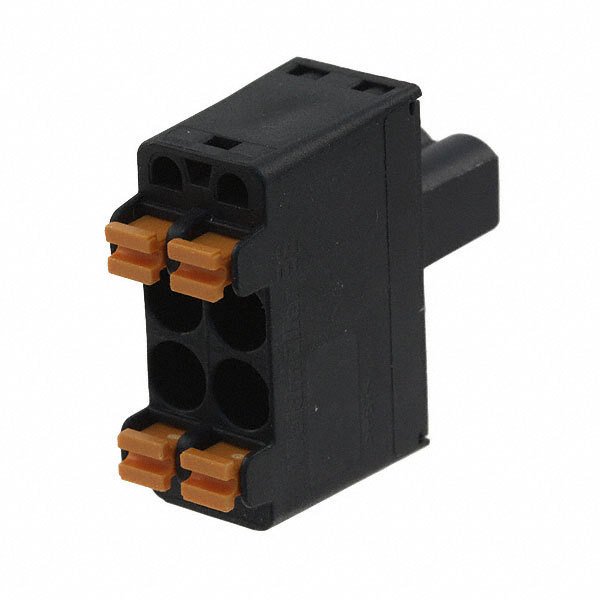

1000860000
| Manufacturer: | Weidmuller |
In Stock 199 pcs
|
|
|---|---|---|---|
| Datasheet: | 1000860000 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | TERM BLOCK PLUG 2POS STR 5.08MM | $3.46 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Female Sockets
- Color
- Black
- Pitch
- 0.200" (5.08mm)
- Series
- Omnimate BL
- Features
- Retention Latches (Non-Wire Side)
- Packaging
- Box
- Screw Size
- -
- Part Status
- Active
- Current - UL
- 10A
- Voltage - UL
- 300V
- Current - IEC
- 20.8A
- Mounting Type
- Free Hanging (In-Line)
- Voltage - IEC
- 400V
- Torque - Screw
- -
- Plug Wire Entry
- 180°
- Contact Material
- Copper Alloy
- Number of Levels
- 1 (Mate), 2 (Input)
- Insulation Height
- 0.974" (24.74mm)
- Termination Style
- Screwless - Leg Spring, Push-In Spring
- Wire Strip Length
- 10mm
- Header Orientation
- -
- Ingress Protection
- IP20
- Contact Tail Length
- -
- Dielectric Material
- Polybutylene Terephthalate (PBT)
- Number of Positions
- 2
- Positions Per Level
- 2 (Mate), 4 (Input)
- Contact Mating Finish
- Tin
- Operating Temperature
- -50°C ~ 100°C
- Wire Gauge or Range - AWG
- 12-26 AWG
- Wire Gauge or Range - mm²
- 0.2-2.5mm²
- Material Flammability Rating
- UL94 V-0
