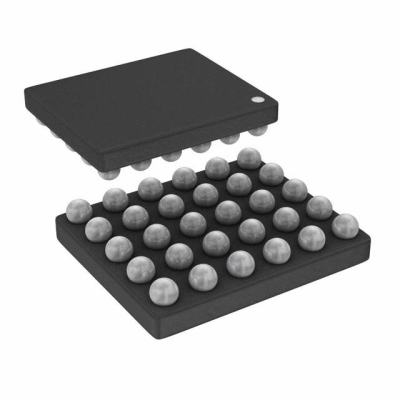

SI8851EDB-T2-E1
| Manufacturer: | Vishay / Siliconix |
In Stock 2467 pcs
|
|
|---|---|---|---|
| Datasheet: | SI8851EDB-T2-E1 | ||
| Product Category: | Transistors - FETs, MOSFETs - Single | Reference Price (In US Dollars) | 1pcs |
| Description: | MOSFET P-CH 20V 7.7A MICRO FOOT | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- TrenchFET®
- FET Type
- P-Channel
- Packaging
- Digi-Reel®
- Vgs (Max)
- ±8V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- 30-XFBGA
- Base Part Number
- SI8851
- Vgs(th) (Max) @ Id
- 1V @ 250µA
- Operating Temperature
- -55°C ~ 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 8mOhm @ 7A, 4.5V
- Power Dissipation (Max)
- 660mW (Ta)
- Supplier Device Package
- Power Micro Foot® (2.4x2)
- Gate Charge (Qg) (Max) @ Vgs
- 180nC @ 8V
- Drain to Source Voltage (Vdss)
- 20V
- Input Capacitance (Ciss) (Max) @ Vds
- 6900pF @ 10V
- Current - Continuous Drain (Id) @ 25°C
- 7.7A (Ta)
- Drive Voltage (Max Rds On, Min Rds On)
- 1.8V, 4.5V
