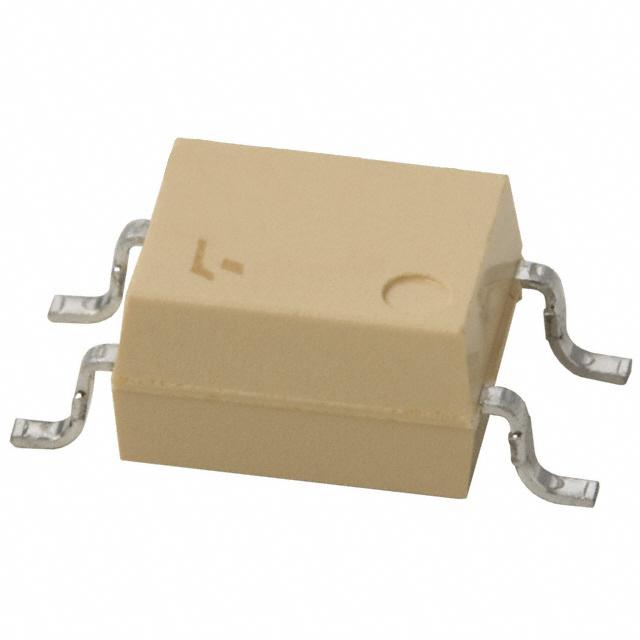

TLP126TPRF
| Manufacturer: | Toshiba Semiconductor and Storage |
In Stock 3506 pcs
|
|
|---|---|---|---|
| Datasheet: | TLP126TPRF | ||
| Product Category: | Optoisolators - Transistor, Photovoltaic Output | Reference Price (In US Dollars) | 1pcs |
| Description: | OPTOISOLTR 3.75KV TRANS 6-MFSOP | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- -
- Packaging
- Digi-Reel®
- Input Type
- AC, DC
- Output Type
- Transistor
- Part Status
- Not For New Designs
- Mounting Type
- Surface Mount
- Package / Case
- 6-SMD (4 Leads), Gull Wing
- Number of Channels
- 1
- Voltage - Isolation
- 3750Vrms
- Vce Saturation (Max)
- 400mV
- Operating Temperature
- -55°C ~ 100°C
- Rise / Fall Time (Typ)
- 8µs, 8µs
- Voltage - Output (Max)
- 80V
- Supplier Device Package
- 6-MFSOP, 4 Lead
- Current - Output / Channel
- 50mA
- Current Transfer Ratio (Max)
- 1200% @ 1mA
- Current Transfer Ratio (Min)
- 100% @ 1mA
- Voltage - Forward (Vf) (Typ)
- 1.15V
- Turn On / Turn Off Time (Typ)
- 10µs, 8µs
- Current - DC Forward (If) (Max)
- 50mA
