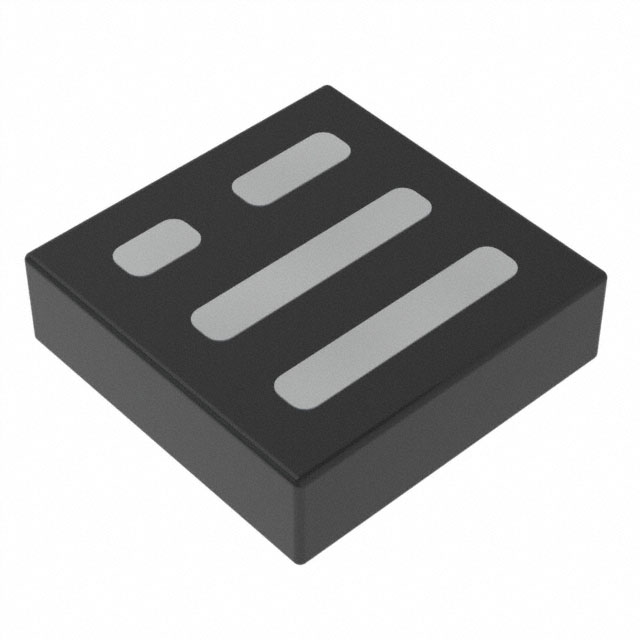

CSD22205L

Product Parameter

Series

NexFET™

FET Type

P-Channel

Packaging

Digi-Reel®

Vgs (Max)

-6V

Technology

MOSFET (Metal Oxide)

FET Feature

-

Part Status

Active

Mounting Type

Surface Mount

Package / Case

4-XFLGA

Vgs(th) (Max) @ Id

1.05V @ 250µA

Operating Temperature

-55°C ~ 150°C (TJ)

Rds On (Max) @ Id, Vgs

9.9mOhm @ 1A, 4.5V

Power Dissipation (Max)

600mW (Ta)

Supplier Device Package

4-PICOSTAR

Gate Charge (Qg) (Max) @ Vgs

8.5nC @ 4.5V

Drain to Source Voltage (Vdss)

8V

Input Capacitance (Ciss) (Max) @ Vds

1390pF @ 4V

Current - Continuous Drain (Id) @ 25°C

7.4A (Ta)

Drive Voltage (Max Rds On, Min Rds On)

1.5V, 4.5V
