Lanka Micro

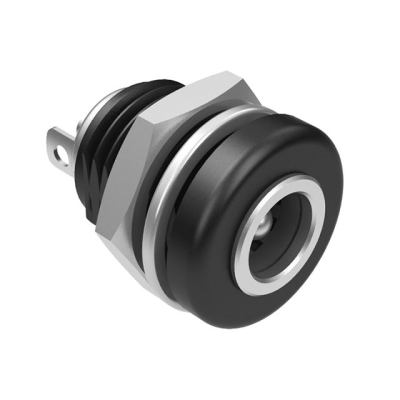

54-00151
| Manufacturer: | Tensility International Corp |
In Stock 1713 pcs
|
|
|---|---|---|---|
| Datasheet: | 54-00151 | ||
| Product Category: | Barrel - Power Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN JACK PNL MNT 5.5X2.1MM ISO | $4.47 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Gender
- Male
- Series
- -
- Features
- Mounting Hardware
- Includes
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Packaging
- Tray
- Shielding
- Unshielded
- Body Color
- Silver, Black
- Part Status
- Active
- Termination
- Solder Cup
- Thread Size
- M11x1
- Body Material
- -
- Mounting Type
- Panel Mount
- Connector Type
- Jack
- Actual Diameter
- 0.083" (2.10mm ID), 0.217" (5.50mm OD)
- Voltage - Rated
- 48V
- Contact Material
- -
- Insulation Color
- Black
- Mounting Feature
- Bulkhead - Rear Side Nut
- Ingress Protection
- -
- Internal Switch(s)
- Does Not Contain Switch
- Dielectric Material
- Polyamide (PA), Nylon
- Mating Length/Depth
- -
- Current Rating (Amps)
- 7.5A
- Operating Temperature
- -25°C ~ 105°C
- Contact Material - Plating
- Nickel
- Material Flammability Rating
- UL94 V-0
- Number of Positions/Contacts
- 2 Conductors, 2 Contacts
- Industry Recognized Mating Diameter
- 2.10mm ID (0.083"), 5.50mm OD (0.217")
