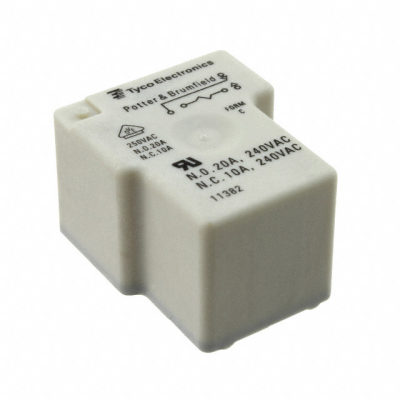

T9ES5D14-12
| Manufacturer: | TE Connectivity Potter & Brumfield Relays |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | T9ES5D14-12 | ||
| Product Category: | Power Relays, Over 2 Amps | Reference Price (In US Dollars) | 1pcs |
| Description: | RELAY GEN PURPOSE SPDT 20A 12V | $2.73 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- T9E
- Features
- -
- Coil Type
- Non Latching
- Packaging
- Bulk
- Relay Type
- General Purpose
- Part Status
- Active
- Seal Rating
- Sealed - Fully
- Coil Current
- 83.3mA
- Coil Voltage
- 12VDC
- Contact Form
- SPDT (1 Form C)
- Operate Time
- 15ms
- Release Time
- 15ms
- Mounting Type
- Through Hole
- Coil Insulation
- Class F
- Coil Resistance
- 144 Ohms
- Contact Material
- Silver Tin Oxide Indium Oxide (AgSnOInO)
- Switching Voltage
- 250VAC - Max
- Termination Style
- PC Pin
- Must Operate Voltage
- 9 VDC
- Must Release Voltage
- 1.2 VDC
- Operating Temperature
- -40°C ~ 85°C
- Contact Rating (Current)
- 20A
