227241-1

Product Parameter

Series

-

Features

-

Includes

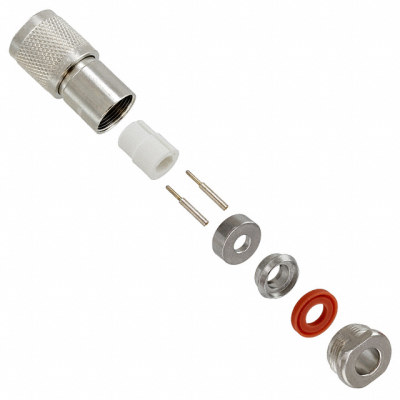

8 pcs - 1 Connector, 1 Clamp, 2 Contacts, 1 Gasket, 1 Insulator, 1 Nut, 1 Sleeve

Impedance

-

Packaging

Bulk

Body Finish

Nickel

Cable Group

Belden 9207

Part Status

Obsolete

Body Material

Zinc

Housing Color

Silver

Mating Cycles

-

Mounting Type

Free Hanging (In-Line)

Connector Type

Plug, Male Pin

Fastening Type

Threaded

Insertion Loss

-

Voltage Rating

500V

Connector Style

Twinaxial

Number of Ports

1

Mounting Feature

-

Ingress Protection

-

Shield Termination

Clamp

Contact Termination

Solder

Dielectric Material

Polybutylene Terephthalate (PBT), Polyester

Operating Temperature

-40°C ~ 80°C

Center Contact Plating

Silver

Center Contact Material

Brass
