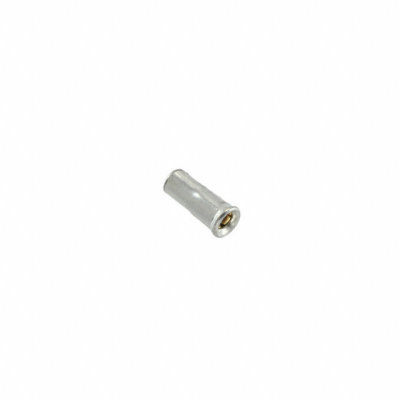

5645518-1
| Manufacturer: | TE Connectivity AMP Connectors |
In Stock 49500 pcs
|
|
|---|---|---|---|
| Datasheet: | 5645518-1 | ||
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN PIN RCPT .038-.042 SOLDER | $0.3 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- 4
- Features
- -
- Packaging
- Cut Tape (CT)
- Tail Type
- No Tail
- Part Status
- Active
- Termination
- Solder
- Socket Depth
- -
- Tail Diameter
- -
- Contact Finish
- Tin
- Board Thickness
- 0.031" ~ 0.125" (0.79mm ~ 3.18mm)
- Flange Diameter
- 0.093" (2.36mm)
- Insertion Force
- -
- Contact Material
- Beryllium Copper
- Length - Overall
- 0.206" (5.23mm)
- Pin Hole Diameter
- -
- Accepts Pin Diameter
- 0.038" ~ 0.042" (0.97mm ~ 1.07mm)
- Operating Temperature
- -65°C ~ 125°C
- Mounting Hole Diameter
- 0.075" (1.91mm)
- Accepts Square Pin Size
- -
- Contact Finish Thickness
- 100.0µin (2.54µm)
