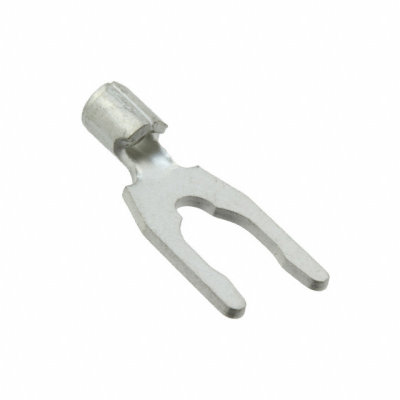

53832-2

Product Parameter

Color

-

Series

Solistrand

Features

Brazed Seam, Serrated Termination

Packaging

Digi-Reel®

Insulation

Non-Insulated

Wire Gauge

16-22 AWG

Part Status

Active

Termination

Crimp

Mounting Type

Free Hanging (In-Line)

Stud/Tab Size

10 Stud

Terminal Type

Spring, Snap

Contact Finish

Tin

Contact Material

Phosphor Bronze

Length - Overall

0.685" (17.40mm)

Insulation Diameter

-

Width - Outer Edges

0.294" (7.47mm)

Length - Termination

0.181" (4.60mm)

Material - Insulation

-

Tongue Inside Opening

0.190" (4.83mm)

Length - Ring Center to Termination

0.281" (7.14mm)
