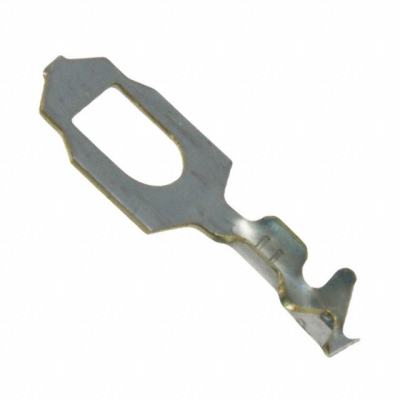

350502-2

Product Parameter

Color

-

Series

-

Features

-

Packaging

Digi-Reel®

Insulation

Non-Insulated

Wire Gauge

22-28 AWG

Part Status

Active

Termination

Crimp

Mounting Type

Free Hanging (In-Line)

Stud/Tab Size

5 Stud

Terminal Type

Standard

Contact Finish

-

Contact Material

Brass

Length - Overall

0.545" (13.84mm)

Insulation Diameter

0.035" ~ 0.045" (0.89mm ~ 1.14mm)

Width - Outer Edges

0.240" (6.10mm)

Length - Termination

0.220" (5.59mm)

Material - Insulation

-

Tongue Inside Opening

0.133" (3.38mm)

Length - Ring Center to Termination

0.215" (5.46mm)
