2305909-3
| Manufacturer: | TE Connectivity AMP Connectors |
In Stock 1401 pcs
|
|
|---|---|---|---|
| Datasheet: | 2305909-3 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |

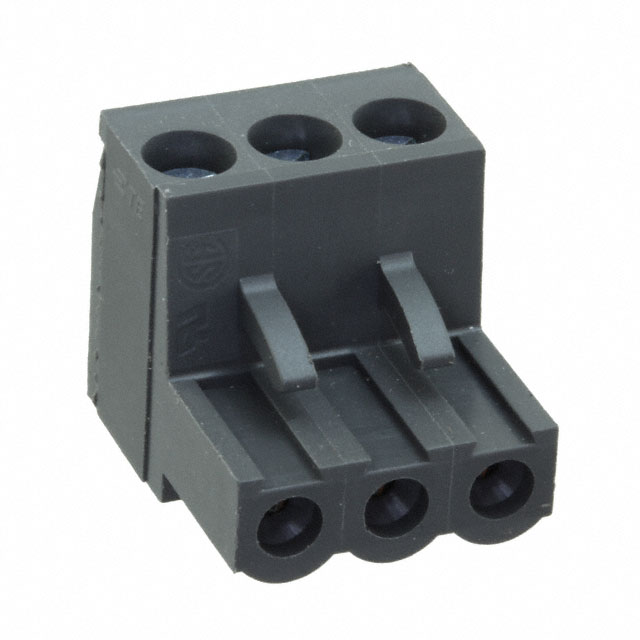

| Description: | SMT TB PARALLEL PLUG, 5.0MM, 3 P | $2.35 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Female Sockets
- Color
- Black
- Pitch
- 0.197" (5.00mm)
- Series
- WireMate, TB, Buchanan
- Features
- Retention Latches (Non-Wire Side)
- Packaging
- Bulk
- Screw Size
- -
- Part Status
- Active
- Current - UL
- 15A
- Voltage - UL
- 300V
- Current - IEC
- -
- Mounting Type
- Free Hanging (In-Line)
- Torque - Screw
- 0.5 Nm (4.4 Lb-In)
- Plug Wire Entry
- 180°
- Contact Material
- Copper Alloy
- Number of Levels
- 1
- Insulation Height
- 0.591" (15.00mm)
- Termination Style
- Screw
- Wire Strip Length
- 7mm
- Header Orientation
- -
- Ingress Protection
- -
- Contact Tail Length
- -
- Dielectric Material
- Thermoplastic
- Number of Positions
- 3
- Positions Per Level
- 3
- Contact Mating Finish
- Nickel
- Operating Temperature
- -
- Wire Gauge or Range - AWG
- 12-26 AWG
- Wire Gauge or Range - mm²
- -
- Material Flammability Rating
- UL94 V-0
