104078-6
| Manufacturer: | TE Connectivity AMP Connectors |
In Stock 4 pcs
|
|
|---|---|---|---|
| Datasheet: | 104078-6 | ||
| Product Category: | Rectangular Connectors - Headers, Receptacles, Female Sockets | Reference Price (In US Dollars) | 1pcs |

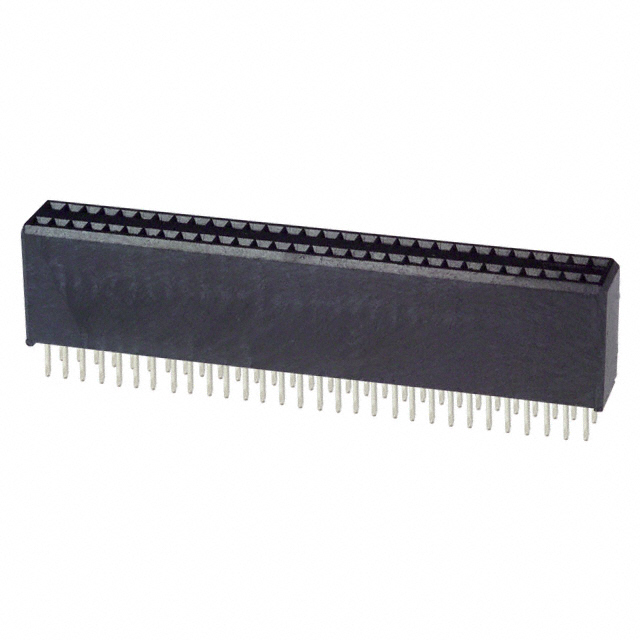

| Description: | CONN RCPT 60POS 0.05 GOLD PCB | $15.44 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Style
- Board to Board
- Series
- AMPMODU System 50
- Features
- -
- Packaging
- Tube
- Part Status
- Active
- Termination
- Solder
- Applications
- -
- Contact Type
- Female Socket
- Contact Shape
- Square
- Mounting Type
- Through Hole
- Connector Type
- Receptacle
- Fastening Type
- Push-Pull
- Number of Rows
- 2
- Pitch - Mating
- 0.050" (1.27mm)
- Voltage Rating
- 30VAC
- Contact Material
- Copper Alloy
- Insulation Color
- Black
- Insulation Height
- 0.350" (8.89mm)
- Ingress Protection
- -
- Insulation Material
- Thermoplastic, Glass Filled
- Number of Positions
- 60
- Row Spacing - Mating
- 0.100" (2.54mm)
- Contact Finish - Post
- Tin-Lead
- Contact Length - Post
- 0.100" (2.54mm)
- Current Rating (Amps)
- 1A
- Operating Temperature
- -65°C ~ 105°C
- Mated Stacking Heights
- 11.43mm, 12.57mm
- Contact Finish - Mating
- Gold
- Number of Positions Loaded
- All
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- 150.0µin (3.81µm)
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
