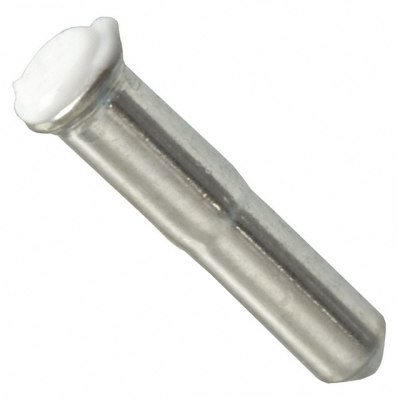

1-5645986-1
| Manufacturer: | TE Connectivity AMP Connectors |
In Stock 10000 pcs
|
|
|---|---|---|---|
| Datasheet: | 1-5645986-1 | ||
| Product Category: | Terminals - PC Pin Receptacles, Socket Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN PIN RCPT .028-.033 SOLDER | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- 3
- Features
- -
- Packaging
- Digi-Reel®
- Tail Type
- No Tail
- Part Status
- Active
- Termination
- Solder
- Socket Depth
- 0.148" ~ 0.260" (3.76mm ~ 6.60mm)
- Tail Diameter
- -
- Contact Finish
- Tin
- Board Thickness
- 0.031" ~ 0.125" (0.79mm ~ 3.18mm)
- Flange Diameter
- 0.080" (2.03mm)
- Insertion Force
- -
- Contact Material
- Beryllium Copper
- Length - Overall
- 0.290" (7.37mm)
- Pin Hole Diameter
- -
- Accepts Pin Diameter
- 0.028" ~ 0.033" (0.71mm ~ 0.84mm)
- Operating Temperature
- -65°C ~ 126°C
- Mounting Hole Diameter
- 0.062" (1.57mm)
- Accepts Square Pin Size
- -
- Contact Finish Thickness
- 100.0µin (2.54µm)
