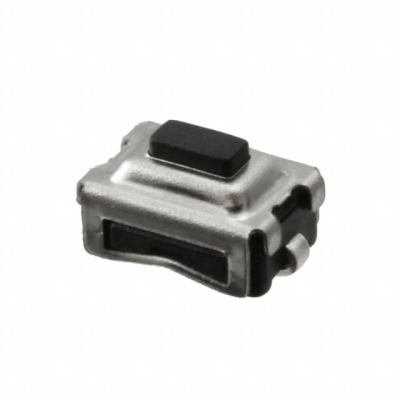

FSM1SJMTR

Product Parameter

Series

-

Circuit

SPST-NO

Outline

6.80mm x 4.70mm

Features

Sealed - Fully

Packaging

Digi-Reel®

Part Status

Obsolete

Illumination

Non-Illuminated

Actuator Type

Rectangular Button

Mounting Type

Surface Mount

Switch Travel

0.35mm

Mechanical Life

50,000 Cycles

Operating Force

130gf

Switch Function

Off-Mom

Actuator Material

Thermoplastic

Termination Style

J Lead

Ingress Protection

IP67 - Dust Tight, Waterproof

Actuator Orientation

Top Actuated

Operating Temperature

-35°C ~ 85°C

Contact Rating @ Voltage

0.05A @ 24VDC

Illumination Type, Color

-

Actuator Length, Right Angle

-

Illumination Voltage (Nominal)

-

Actuator Height off PCB, Vertical

4.30mm
