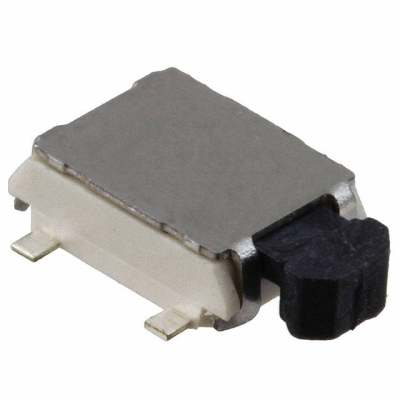

1571262-2

Product Parameter

Series

-

Circuit

SPST-NO

Outline

5.40mm x 5.60mm

Features

-

Packaging

Cut Tape (CT)

Part Status

Discontinued at Digi-Key

Illumination

Non-Illuminated

Actuator Type

Rectangular Button

Mounting Type

Surface Mount, Right Angle

Switch Travel

-

Mechanical Life

50,000 Cycles

Operating Force

220gf

Switch Function

Off-Mom

Actuator Material

Liquid Crystal Polymer (LCP)

Termination Style

Gull Wing

Ingress Protection

-

Actuator Orientation

Side Actuated

Operating Temperature

-20°C ~ 70°C

Contact Rating @ Voltage

0.05A @ 12VDC

Illumination Type, Color

-

Actuator Length, Right Angle

-

Illumination Voltage (Nominal)

-

Actuator Height off PCB, Vertical

-
