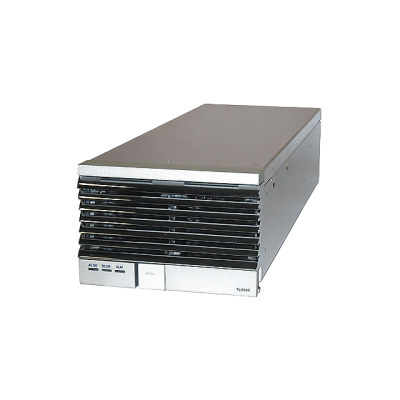

TX500048

Product Parameter

Type

Front End

Series

TX (5000W)

Features

Adjustable Output, Hot Swappable, I²C™ Interface, Load Sharing, PFC, Remote On/Off, Standby Output

Approvals

CE

Efficiency

92%

Part Status

Obsolete

Applications

ITE (Commercial)

Mounting Type

Chassis Mount

Power (Watts)

4800W

Voltage - Input

180 ~ 264 VAC

Size / Dimension

15.94" L x 5.18" W x 3.20" H (404.8mm x 131.5mm x 81.3mm)

Number of Outputs

1

Voltage - Output 1

48V

Voltage - Output 2

-

Voltage - Output 3

-

Voltage - Output 4

-

Minimum Load Required

-

Operating Temperature

-40°C ~ 65°C

Current - Output (Max)

100A
