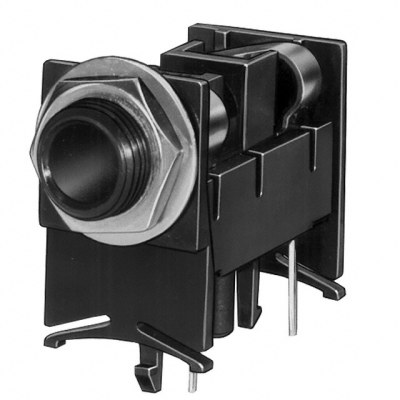

SN70B12A

Product Parameter

Gender

Female

Series

SN70B

Features

Mounting Hardware, Thread Lock

Includes

3 pcs - 1 Connector, 1 Nut, 1 Washer

Packaging

-

Shielding

Unshielded

Body Color

Black

Part Status

Obsolete

Termination

Solder

Thread Size

3/8"-32

Signal Lines

Mono

Body Material

-

Cable Opening

-

Mounting Type

Through Hole, Right Angle

Connector Type

Phone Jack

Actual Diameter

0.250" (6.35mm)

Panel Hole Size

-

Voltage - Rated

-

Contact Material

Brass

Insulation Color

-

Internal Switch(s)

Single Switch

Dielectric Material

Thermoplastic

Mating Length/Depth

-

Operating Temperature

-

Contact Material - Plating

Nickel

Number of Positions/Contacts

2 Conductors, 3 Contacts

Industry Recognized Mating Diameter

6.35mm (0.250", 1/4") - Headphone
