Lanka Micro

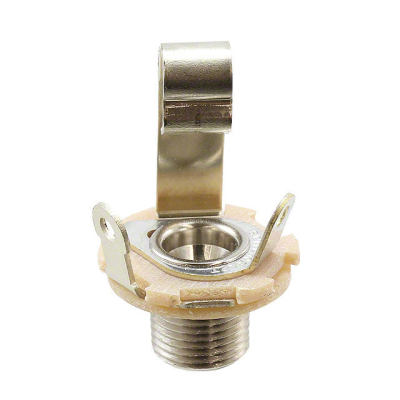

S11
| Manufacturer: | Switchcraft Inc. |
In Stock 98 pcs
|
|
|---|---|---|---|
| Datasheet: | S11 | ||
| Product Category: | Barrel - Audio Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN JACK MONO 5.23MM PNL MNT | $3.48 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Gender
- Female
- Series
- LITTEL-JAX®
- Features
- Mounting Hardware, Thread Lock
- Includes
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Packaging
- Bulk
- Shielding
- Unshielded
- Body Color
- Silver
- Part Status
- Active
- Termination
- Solder Eyelet(s)
- Thread Size
- -
- Signal Lines
- Mono
- Body Material
- Copper Alloy
- Cable Opening
- -
- Mounting Type
- Panel Mount
- Connector Type
- Phone Jack
- Actual Diameter
- 0.210" (5.33mm)
- Panel Hole Size
- -
- Voltage - Rated
- 25VDC
- Contact Material
- Copper Alloy
- Insulation Color
- -
- Internal Switch(s)
- Does Not Contain Switch
- Dielectric Material
- -
- Mating Length/Depth
- -
- Current Rating (Amps)
- 1A
- Operating Temperature
- -20°C ~ 65°C
- Contact Material - Plating
- -
- Number of Positions/Contacts
- 2 Conductors, 2 Contacts
- Industry Recognized Mating Diameter
- 5.23mm (0.206")
