PMD4809PMB1-A.(2).GN
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | PMD4809PMB1-A.(2).GN | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 92X38MM 48VDC WIRE | $25.91 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4900 RPM
- Noise
- 57.6 dB(A)
- Width

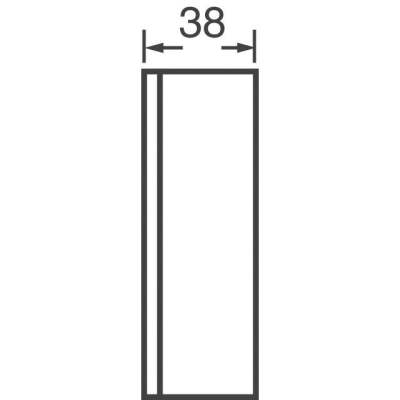

- 38.00mm
- Series
- PMD
- Weight
- 0.419 lb (190.06 g)
- Air Flow
- 120.2 CFM (3.37m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 11.50W
- Voltage Range
- 24 ~ 55.2VDC
- Static Pressure
- 0.710 in H2O (176.9 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- -
- Material - Blade
- -
- Material - Frame
- -
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.240A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
