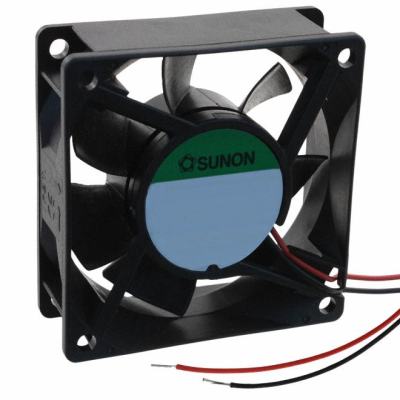

PMD4807PTB1-A.(2).U.GN
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | PMD4807PTB1-A.(2).U.GN | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 70X25MM 48VDC WIRE | $18.6 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 5100 RPM
- Noise
- 45.0 dB(A)
- Width
- 25.00mm
- Series
- PMD
- Weight
- 0.198 lb (89.81 g)
- Air Flow
- 49.0 CFM (1.37m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 5.80W
- Voltage Range
- 24 ~ 56VDC
- Static Pressure
- 0.360 in H2O (89.7 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- -
- Material - Blade
- -
- Material - Frame
- -
- Size / Dimension
- Square - 70mm L x 70mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.120A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
