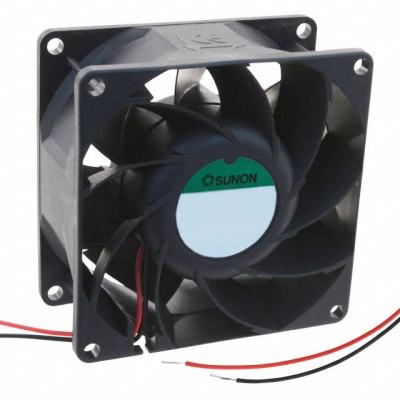

PMD2408PMB2-A(2).GN
| Manufacturer: | Sunon Fans |
In Stock 61 pcs
|
|
|---|---|---|---|
| Datasheet: | PMD2408PMB2-A(2).GN | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 80X38MM 24VDC | $28.69 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4900 RPM
- Noise
- 51.6 dB(A)
- Width
- 38.00mm
- Series
- -
- Weight
- 0.386 lb (175.09 g)
- Air Flow
- 74.5 CFM (2.09m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 7.20W
- Voltage Range
- 10 ~ 27.6VDC
- Static Pressure
- 0.570 in H2O (142.0 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.300A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
