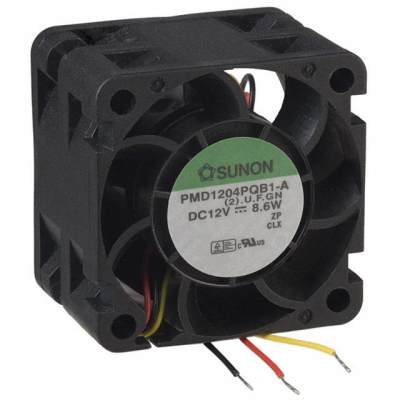

PMD1204PQB1-A.(2).U.F.GN
| Manufacturer: | Sunon Fans |
In Stock 22 pcs
|
|
|---|---|---|---|
| Datasheet: | PMD1204PQB1-A.(2).U.F.GN | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 40X28MM 12VDC WIRE | $22.71 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 15000 RPM
- Noise
- 55.5 dB(A)
- Width
- 28.00mm
- Series
- PMD
- Weight
- 0.101 lb (45.81 g)
- Air Flow
- 24.0 CFM (0.672m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 8.60W
- Voltage Range
- 6 ~ 13.8VDC
- Static Pressure
- 1.340 in H2O (333.8 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 40mm L x 40mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.720A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
