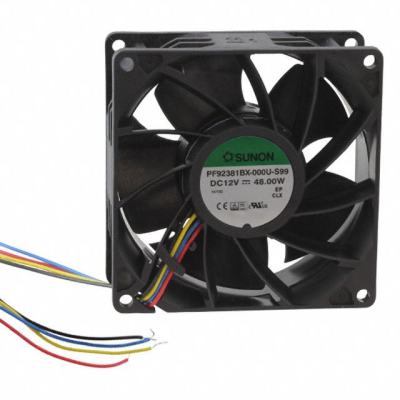

PF92381BX-000U-S99
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | PF92381BX-000U-S99 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 92X38MM 12VDC WIRE | $29.92 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 13000 RPM
- Noise
- 74.1 dB(A)
- Width
- 38.00mm
- Series
- PF
- Weight
- 0.463 lb (210.01 g)
- Air Flow
- 182.4 CFM (5.11m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, PWM Control, Speed Sensor (Tach)
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 48.00W
- Voltage Range
- 10.2 ~ 13.2VDC
- Static Pressure
- 2.940 in H2O (732.3 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 4A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
