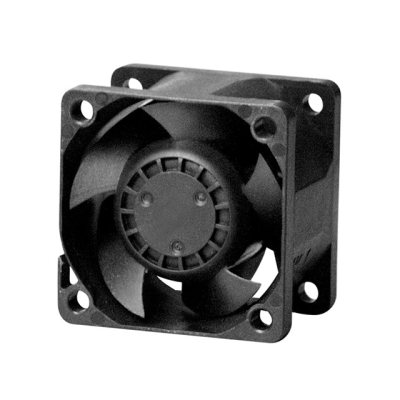

PF40281B1-000U-F99
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | PF40281B1-000U-F99 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | 40X28 12VDC 24.9CFM TACH | $17.39 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 17600 RPM
- Noise
- 56.0 dB(A)
- Width
- 28.00mm
- Series
- PF
- Weight
- 0.093 lb (42.18 g)
- Air Flow
- 24.9 CFM (0.697m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, Locked Rotor Sensor
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 6.12W
- Voltage Range
- 6.5 ~ 13.2VDC
- Static Pressure
- 1.950 in H2O (485.7 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 40mm L x 40mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.510A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
