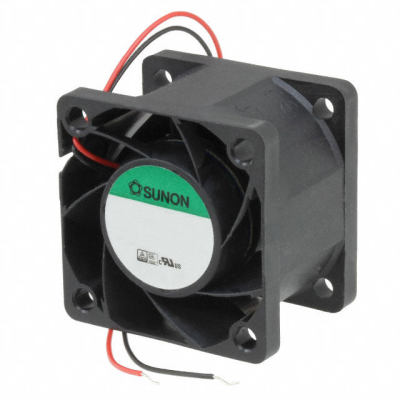

PF38281BX-000U-A99
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | PF38281BX-000U-A99 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 38X28MM 12VDC WIRE | $17.54 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 20000 RPM
- Noise
- 59.0 dB(A)
- Width
- 28.00mm
- Series
- PF
- Weight
- 0.088 lb (39.92 g)
- Air Flow
- 23.0 CFM (0.644m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 6.24W
- Voltage Range
- 6.5 ~ 13.2VDC
- Static Pressure
- 2.230 in H2O (555.5 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 38mm L x 38mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.520A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
