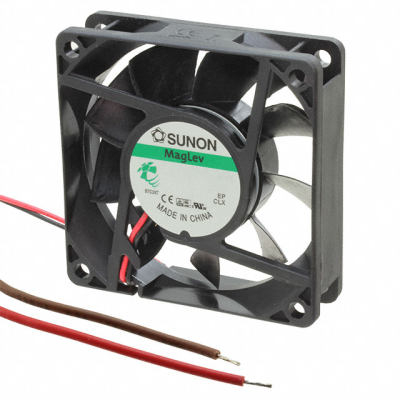

ME70202V1-000U-A99
| Manufacturer: | Sunon Fans |
In Stock 19 pcs
|
|
|---|---|---|---|
| Datasheet: | ME70202V1-000U-A99 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 70X70X20MM 24VDC VAPO | $10.43 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3200 RPM
- Noise
- 33.0 dB(A)
- Width
- 20.00mm
- Series
- MagLev® ME
- Weight
- 0.133 lb (60.33 g)
- Air Flow
- 29.0 CFM (0.812m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Vapo-Bearing™
- Power (Watts)
- 1.59W
- Voltage Range
- 8 ~ 27.6VDC
- Static Pressure
- 0.140 in H2O (34.9 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 70mm L x 70mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.066A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
