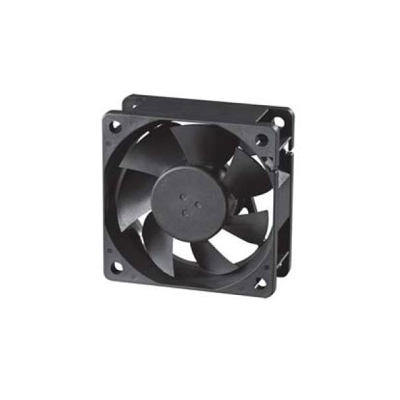

MB60252V3-000U-A99
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | MB60252V3-000U-A99 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 24VDC 60X60X25MM | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3100 RPM
- Noise
- 21.0 dB(A)
- Width
- 25.00mm
- Series
- MagLev® MB
- Weight
- -
- Air Flow
- 16.0 CFM (0.448m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- CUR, TUV, UL
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Vapo-Bearing™
- Power (Watts)
- 770mW
- Voltage Range
- 13.5 ~ 27.6VDC
- Static Pressure
- 0.100 in H2O (24.9 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 60000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.032A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
