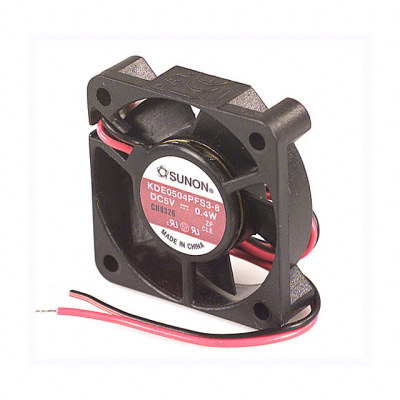

KDE0504PFS3-8
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | KDE0504PFS3-8 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 40X10.5MM 5VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4500 RPM
- Noise
- 22.8 dB(A)
- Width
- 10.50mm
- Series
- KDE
- Weight
- 0.044 lb (19.96 g)
- Air Flow
- 4.5 CFM (0.126m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- cUR, UL
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Sleeve
- Power (Watts)
- 400mW
- Voltage Range
- 4 ~ 6VDC
- Static Pressure
- 0.090 in H2O (22.4 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 40mm L x 40mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.080A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
