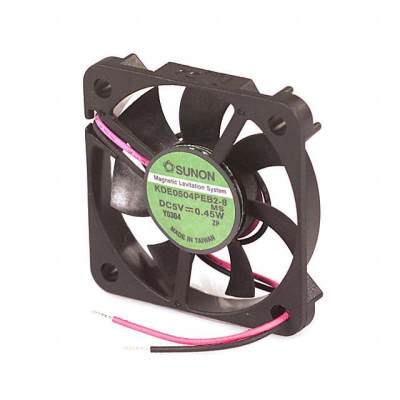

KDE0504PEB2-8 (MS)
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | KDE0504PEB2-8 (MS) | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 40X6.9MM 5VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6000 RPM
- Noise
- 28.0 dB(A)
- Width
- 6.90mm
- Series
- KDE
- Weight
- 0.017 lb (7.71 g)
- Air Flow
- 5.3 CFM (0.148m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 550mW
- Voltage Range
- 3 ~ 6VDC
- Static Pressure
- 0.070 in H2O (17.4 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 40mm L x 40mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.110A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
