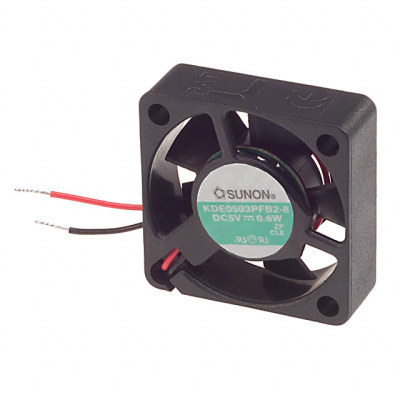

KDE0503PFB2-8
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | KDE0503PFB2-8 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 30X10MM BALL 5VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 8000 RPM
- Noise
- 25.0 dB(A)
- Width
- 10.00mm
- Series
- KDE
- Weight
- 0.017 lb (7.71 g)
- Air Flow
- 3.0 CFM (0.084m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CUR, TUV, UL
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 600mW
- Voltage Range
- 4 ~ 6VDC
- Static Pressure
- 0.110 in H2O (27.4 Pa)
- Voltage - Rated
- 5VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 30mm L x 30mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.120A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
