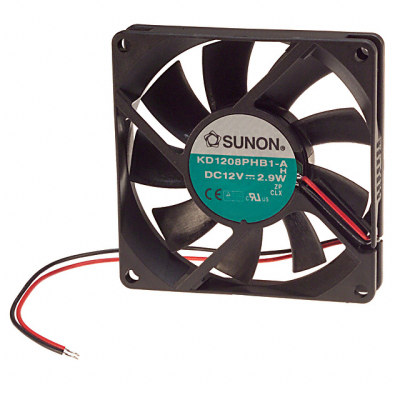

KD1208PHB1- A.H.
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | KD1208PHB1- A.H. | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 80X15MM 12VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3300 RPM
- Noise
- 39.5 dB(A)
- Width
- 15.00mm
- Series
- KD
- Weight
- 0.157 lb (71.21 g)
- Air Flow
- 35.0 CFM (0.980m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 2.90W
- Voltage Range
- 5 ~ 13.8VDC
- Static Pressure
- 0.170 in H2O (42.3 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 80mm L x 80mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.240A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
